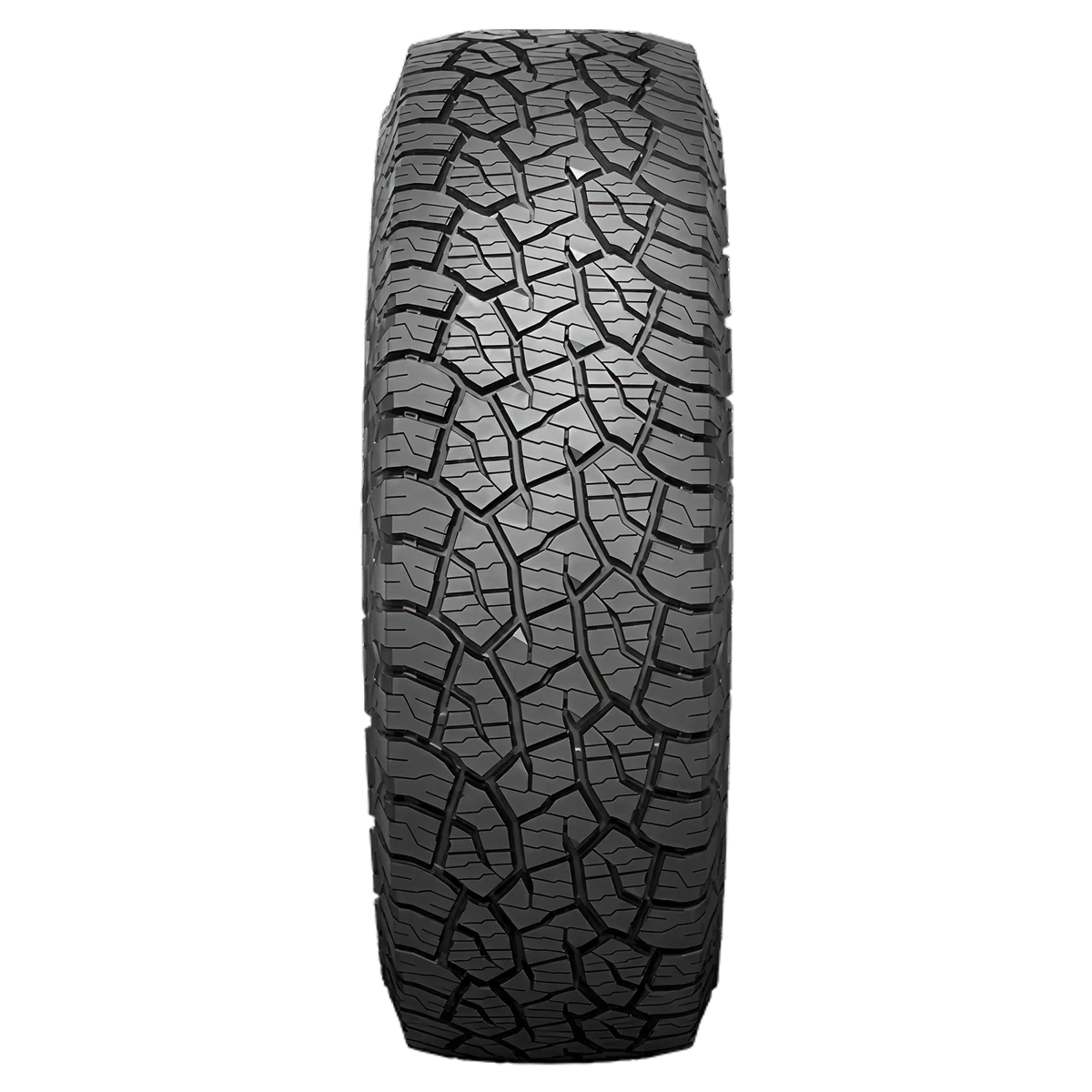

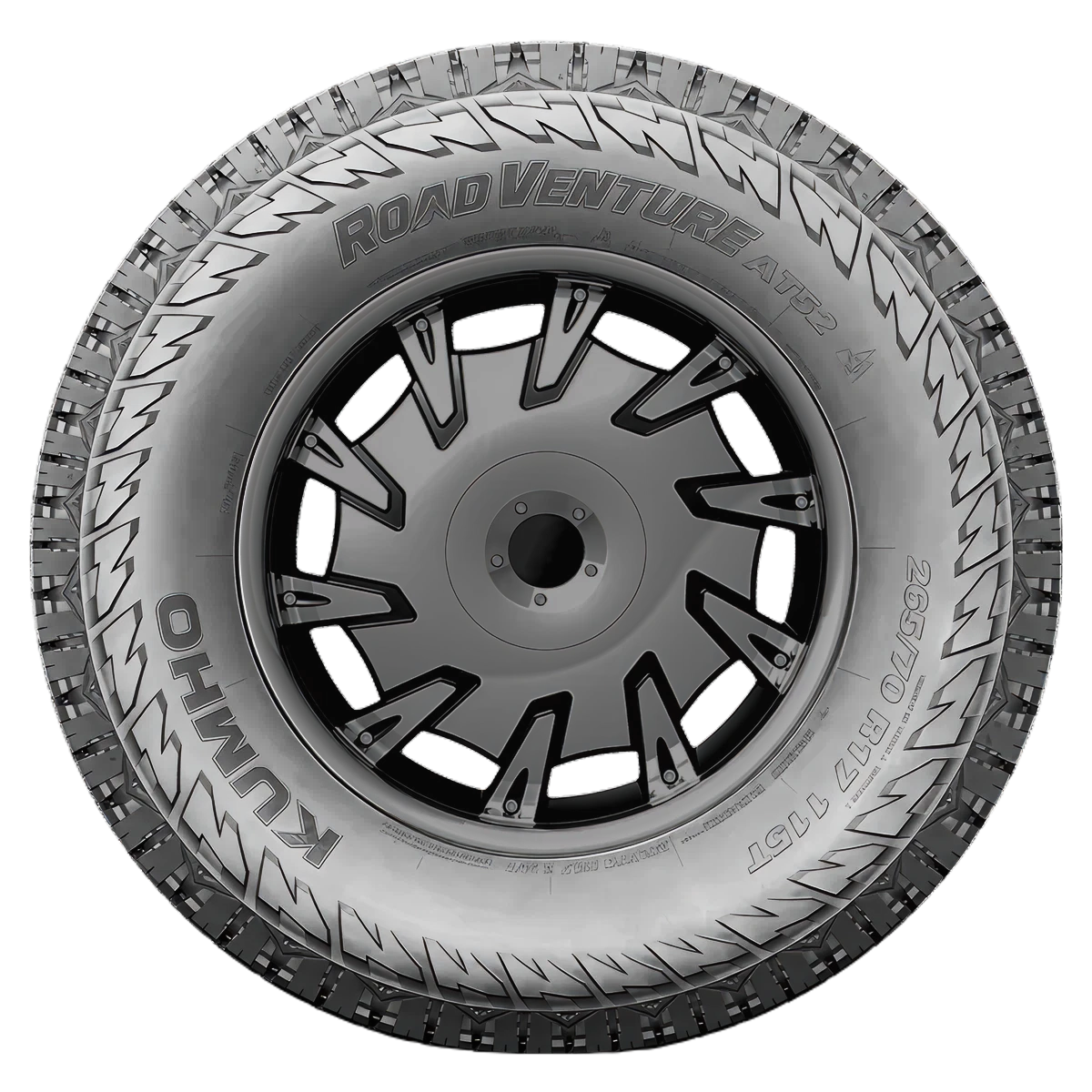

Road Venture AT52
All Terrain
Any terrain. Any weather.
Long-lasting off-road and winter performance, with on-road comfort. Built for pickup trucks, SUVs and 4x4s. Conquer rough terrain, enjoy on-road comfort, and feel confident in all seasons.
Tire Highlights
- Excellent performance in wet and snow conditions with 3PMSF rating
- Quiet and comfortable ride with on-off road traction
Performance ratings
Ratings show how a tire compares to other Kumho tires of the same type.
DryExcellent
WetExcellent
NoiseBetter
WearExcellent
ComfortBetter
SnowExcellent
Off RoadExcellent
Features & Benefits
- Enhanced wet and winter traction with a 3PMSF rating from multi-angle sipe design and zig-zag groove application.
- Extended tread-life complemented by an optimal polymer blend ratio in the compound and complex carbon black implementation.
- Quiet and comfortable ride for the class due to a five-pitch block variation in the tread design and a balanced void ratio.
- Excellent dry traction with the application of large interlocking tread blocks.
The Kumho Tire Warranty Program
NOTE:NOT VALID FOR OE TIRES
KUMHO MANUFACTURER'S WARRANTY+-
All Kumho commercial tires are covered for a minimum of 60 months from the date of purchase. Long haul Smartway verified tires have coverage for 72 months.
55K P-Metric LIMITED TREAD WEAR WARRANTY+-
If an eligible Kumho brand replacement tire does not reach the warranted mileage, Kumho will offer a pro-rated credit based on the unused mileage. Exclusions may apply.
50K LT-Metric LIMITED TREAD WEAR WARRANTY+-
If an eligible Kumho brand replacement tire does not reach the warranted mileage, Kumho will offer a pro-rated credit based on the unused mileage. Exclusions may apply.
Size & Technical Data
15 Inch (5 sizes)
30X9.50R15LT 104S LRC / 6-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290123 | 30X9.50R15LT | 0.0 | 6.0 - 8.0 | 9.4 on 7.5 | 29.5 | 36.5 | 16.0 | 1985 | - | 50 | 104S | BSW | LRC / 6-Ply | 196.56 | 8808956300142 | - |
31X10.50R15LT 109S LRC / 6-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283883 | 31X10.50R15LT | 0.0 | 7.0 - 9.0 | 10.6 on 8.5 | 30.5 | 42.0 | 16.0 | 2270 | - | 50 | 109S | BSW | LRC / 6-Ply | 195.48 | 8808956300159 | - |
LT215/75R15 106/103R LRD / 8-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290153 | LT215/75R15 | 0.0 | 5.5 - 7.0 | 8.5 on 6.0 | 27.7 | 34.1 | 16.0 | 2095 | 1930 | 65 | 106/103R | BSW | LRD / 8-Ply | 183.6 | 8808956300166 | - |
LT235/75R15 104/101S LRC / 6-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290093 | LT235/75R15 | 0.0 | 6.0 - 8.0 | 9.3 on 6.5 | 28.9 | 33.9 | 16.0 | 1985 | 1820 | 50 | 104/101S | BSW | LRC / 6-Ply | 191.16 | 8808956300173 | - |
235/75R15 109T XL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2289873 | 235/75R15 | 680 A/A | 6.0 - 8.0 | 9.3 on 6.5 | 28.9 | 33.9 | 13.5 | 2271 | - | 50 | 109T | BSW | XL | 154.44 | 8808956300135 | - |
16 Inch (11 sizes)
LT225/75R16 115/112S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2289923 | LT225/75R16 | 0.0 | 6.0 - 7.5 | 8.8 on 6.0 | 29.3 | 40.9 | 16.0 | 2680 | 2469 | 80 | 115/112S | BSW | LRE / 10-Ply | 199.8 | 8808956300210 | - |
235/70R16 106T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2289893 | 235/70R16 | 680 A/A | 6.0 - 8.0 | 9.4 on 7. | 29.0 | 31.4 | 13.5 | 2094 | - | 51 | 106T | BSW | SL | 172.8 | 8808956299699 | - |
LT235/85R16 120/116S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283913 | LT235/85R16 | 0.0 | 6.0 - 7.5 | 9.3 on 6.5 | 31.7 | 46.7 | 16.0 | 3042 | 2778 | 80 | 120/116S | BSW | LRE / 10-Ply | 210.6 | 8808956300227 | - |
245/70R16 111T XL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290043 | 245/70R16 | 680 A/A | 6.5 - 8.0 | 9.8 on 7.0 | 29.5 | 35.1 | 13.5 | 2403 | - | 50 | 111T | BSW | XL | 184.68 | 8808956300425 | - |
245/75R16 111T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2289903 | 245/75R16 | 680 A/A | 6.5 - 8.0 | 9.8 on 7.0 | 30.5 | 35.1 | 13.5 | 2403 | - | 51 | 111T | BSW | SL | 173.88 | 8808956299705 | - |
LT245/75R16 120/116S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283793 | LT245/75R16 | 0.0 | 6.5 - 8.0 | 9.8 on 7.0 | 30.5 | 45.2 | 16.0 | 3042 | 2778 | 80 | 120/116S | BSW | LRE / 10-Ply | 216.0 | 8808956299712 | - |
255/70R16 111T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290003 | 255/70R16 | 680 A/A | 6.5 - 8.5 | 10.2 on 7.5 | 30.1 | 35.9 | 13.5 | 2403 | - | 51 | 111T | BSW | SL | 182.52 | 8808956300180 | - |
265/70R16 112T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283783 | 265/70R16 | 680 A/A | 7.0 - 9.0 | 10.7 on 8.0 | 30.6 | 37.3 | 13.5 | 2469 | - | 51 | 112T | BSW | SL | 186.84 | 8808956300197 | - |
265/75R16 116T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283853 | 265/75R16 | 680 A/A | 7.0 - 9.0 | 10.5 on 7.5 | 31.7 | 40.7 | 13.5 | 2756 | - | 51 | 116T | BSW | SL | 199.8 | 8808956300203 | - |
LT265/75R16 123/120R LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283763 | LT265/75R16 | 0.0 | 7.0 - 9.0 | 10.5 on 7.5 | 31.7 | 50.9 | 16.0 | 3415 | 3085 | 80 | 123/120R | BSW | LRE / 10-Ply | 223.56 | 8808956300234 | - |
LT285/75R16 126/123R LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2289883 | LT285/75R16 | 0.0 | 7.5 - 9.5 | 11.3 on 8.0 | 32.8 | 53.9 | 16.0 | 3750 | 3415 | 80 | 126/123R | BSW | LRE / 10-Ply | 258.12 | 8808956299729 | - |
17 Inch (16 sizes)
35X12.50R17LT 121/118R LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290063 | 35X12.50R17LT | 0.0 | 8.0 - 10.5 | 12.5 on 10.0 | 34.5 | 44.2 | 16.0 | 3195 | 2918 | 65 | 121/118R | BSW | LRE / 10-Ply | 339.12 | 8808956299774 | - |
235/65R17 108T XL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290133 | 235/65R17 | 680 A/A | 6.5 - 8.5 | 9.4 on 7.0 | 29.1 | 33.0 | 13.5 | 2205 | - | 50 | 108T | BSW | XL | 201.96 | 8808956300241 | - |
LT235/80R17 120/117R LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283873 | LT235/80R17 | 0.0 | 6.0 - 8.0 | 9.3 on 6.5 | 31.8 | 44.7 | 16.0 | 3085 | 2835 | 80 | 120/117R | BSW | LRE / 10-Ply | 246.24 | 8808956300265 | - |
245/65R17 107T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283903 | 245/65R17 | 680 A/A | 7.0 - 8.5 | 9.8 on 7.0 | 29.5 | 31.7 | 13.5 | 2149 | - | 51 | 107T | BSW | SL | 196.56 | 8808956299736 | - |
245/70R17 110T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2289913 | 245/70R17 | 680 A/A | 6.5 - 8.0 | 9.8 on 7.0 | 30.6 | 35.2 | 13.5 | 2337 | - | 51 | 110T | BSW | SL | 200.88 | 8808956299743 | - |
LT245/70R17 119/116S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2289973 | LT245/70R17 | 0.0 | 6.5 - 8.0 | 9.8 on 7.0 | 30.6 | 44.2 | 16.0 | 3000 | 2756 | 80 | 119/116S | BSW | LRE / 10-Ply | 236.52 | 8808956300272 | - |
LT245/75R17 121/118S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283773 | LT245/75R17 | 0.0 | 6.5 - 8.0 | 9.8 on 7.0 | 31.5 | 46.4 | 16.0 | 3195 | 2910 | 80 | 121/118S | BSW | LRE / 10-Ply | 245.16 | 8808956300289 | - |
255/70R17 112T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283933 | 255/70R17 | 680 A/A | 6.5 - 8.5 | 10.2 on 7.5 | 31.1 | 38.2 | 13.5 | 2469 | - | 51 | 112T | BSW | SL | 207.36 | 8808956321550 | - |
255/75R17 115T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2289963 | 255/75R17 | 680 A/A | 6.5 - 8.5 | 10.0 on 7.0 | 32.0 | 37.1 | 13.5 | 2679 | - | 51 | 115T | BSW | SL | 233.28 | 8808956299750 | - |
LT255/75R17 111/108R LRC / 6-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290163 | LT255/75R17 | 0.0 | 6.5 - 8.5 | 10.0 on 7.0 | 32.0 | 42.3 | 16.0 | 2405 | 2205 | 50 | 111/108R | BSW | LRC / 6-Ply | 264.6 | 8808956300296 | - |
265/65R17 112T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2289933 | 265/65R17 | 680 A/A | 7.5 - 9.5 | 10.7 on 8.0 | 30.6 | 36.1 | 13.5 | 2469 | - | 51 | 112T | BSW | SL | 211.68 | 8808956299767 | - |
265/70R17 115T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2304403 | 265/70R17 | 680 A/A | 7.0 - 9.0 | 10.7 on 8.0 | 31.7 | 37.9 | 13.5 | 2679 | - | 51 | 115T | BSW | SL | 196.56 | 8808956300258 | - |
LT265/70R17 121/118S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283723 | LT265/70R17 | 0.0 | 7.0 - 9.0 | 10.7 on 8.0 | 31.7 | 51.1 | 16.0 | 3195 | 2910 | 80 | 121/118S | BSW | LRE / 10-Ply | 246.24 | 8808956300302 | - |
LT275/70R17 121/118R LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290113 | LT275/70R17 | 0.0 | 7.0 - 9.0 | 11.0 on 8.0 | 32.2 | 49.7 | 16.0 | 3195 | 2910 | 80 | 121/118R | BSW | LRE / 10-Ply | 290.52 | 8808956300319 | - |
LT285/70R17 121/118R LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283813 | LT285/70R17 | 0.0 | 7.5 - 9.5 | 11.5 on 8.5 | 32.8 | 54.6 | 16.0 | 3195 | 2910 | 80 | 121/118R | BSW | LRE / 10-Ply | 285.12 | 8808956300326 | - |
LT315/70R17 121/118S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290013 | LT315/70R17 | 0.0 | 8.0 - 10.5 | 12.7 on 9.5 | 34.4 | 60.3 | 16.0 | 3195 | 2910 | 80 | 121/118S | BSW | LRE / 10-Ply | 338.04 | 8808956300333 | - |
18 Inch (12 sizes)
35X12.50R18LT 128R LRF / 12-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290083 | 35X12.50R18LT | 0.0 | 8.5 - 11.0 | 12.5 on 10.0 | 34.5 | 50.3 | 16.0 | 3970 | - | 80 | 128R | BSW | LRF / 12-Ply | 348.74 | 8808956299798 | - |
LT255/65R18 120/117S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2370423 | LT255/65R18 | - | 7.5 - 9.0 | 10.2 on 7.5 | 31.1 | 48.1 | 15.6 | 3085 | 2835 | 80 | 120/117S | BSW | LRE / 10-Ply | 262.88 | 8808956620332 | - |
255/70R18 113T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2289983 | 255/70R18 | 680 A/A | 6.5 - 8.5 | 10.2 on 7.5 | 32.1 | 39.8 | 13.5 | 2535 | - | 51 | 113T | BSW | SL | 217.3 | 8808956300340 | - |
265/60R18 110T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283863 | 265/60R18 | 680 A/A | 7.5 - 9.5 | 10.7 on 8.0 | 30.5 | 38.8 | 13.5 | 2337 | - | 51 | 110T | BSW | SL | 230.02 | 8808956299781 | - |
265/65R18 114T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283843 | 265/65R18 | 680 A/A | 7.5 - 9.5 | 10.7 on 8.0 | 31.5 | 41.0 | 13.5 | 2601 | - | 51 | 114T | BSW | SL | 242.74 | 8808956353933 | - |
265/70R18 116T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290033 | 265/70R18 | 680 A/A | 7.0 - 9.0 | 10.7 on 8.0 | 32.6 | 40.5 | 13.5 | 2756 | - | 51 | 116T | BSW | SL | 235.32 | 8808956348359 | - |
LT265/70R18 124/121S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283893 | LT265/70R18 | 0.0 | 7.0 - 9.0 | 10.7 on 8.0 | 32.6 | 53.9 | 16.0 | 3525 | 3195 | 80 | 124/121S | BSW | LRE / 10-Ply | 262.88 | 8808956353919 | - |
275/65R18 116T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283803 | 275/65R18 | 680 A/A | 7.5 - 9.5 | 11.0 on 8.0 | 32.1 | 41.7 | 13.5 | 2756 | - | 51 | 116T | BSW | SL | 244.86 | 8808956300357 | - |
LT275/65R18 123/120S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283823 | LT275/65R18 | 0.0 | 8.0 - 9.5 | 11.0 on 8.0 | 32.1 | 53.1 | 16.0 | 3415 | 3085 | 80 | 123/120S | BSW | LRE / 10-Ply | 290.44 | 8808956348366 | - |
LT275/70R18 125/122S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283743 | LT275/70R18 | 0.0 | 7.0 - 9.0 | 11.0 on 8.0 | 33.2 | 55.1 | 16.0 | 3640 | 3305 | 80 | 125/122S | BSW | LRE / 10-Ply | 287.26 | 8808956299804 | - |
LT285/65R18 125/122S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2289993 | LT285/65R18 | 0.0 | 8.5 - 10.0 | 11.5 on 8.5 | 32.6 | 54.9 | 16.0 | 3640 | 3305 | 80 | 125/122S | BSW | LRE / 10-Ply | 327.54 | 8808956299811 | - |
LT295/70R18 129/126S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290103 | LT295/70R18 | 0.0 | 7.5 - 10.0 | 11.8 on 8.5 | 34.3 | 57.0 | 16.0 | 4080 | 3750 | 80 | 129/126S | BSW | LRE / 10-Ply | 316.94 | 8808956348373 | - |
20 Inch (14 sizes)
33X12.50R20LT 119Q LRF / 12-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290143 | 33X12.50R20LT | 0.0 | 8.5 - 11.0 | 12.5 on 10.0 | 32.5 | 44.2 | 16.0 | 3000 | - | 80 | 119Q | BSW | LRF / 12-Ply | 363.58 | 8808956299835 | - |
35X12.50R20LT 121R LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283923 | 35X12.50R20LT | 0.0 | 8.5 - 11.0 | 12.5 on 10.0 | 34.5 | 62.9 | 16.0 | 3195 | - | 65 | 121R | BSW | LRE / 10-Ply | 397.5 | 8808956299842 | - |
37X12.50R20LT 126R LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290173 | 37X12.50R20LT | 0.0 | 8.5 - 11.0 | 12.5 on 10.0 | 36.5 | 55.0 | 16.0 | 3750 | - | 65 | 126R | BSW | LRE / 10-Ply | 440.96 | 8808956300371 | - |
LT265/60R20 121/118S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2289953 | LT265/60R20 | 0.0 | 8.0 - 9.5 | 10.7 on 8.0 | 32.5 | 52.1 | 16.0 | 3195 | 2910 | 80 | 121/118S | BSW | LRE / 10-Ply | 328.6 | 8808956299859 | - |
275/55R20 113T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283753 | 275/55R20 | 680 A/A | 7.5 - 9.5 | 11.2 on 8.5 | 31.9 | 44.0 | 13.5 | 2535 | - | 51 | 113T | BSW | SL | 245.92 | 8808956368180 | - |
275/60R20 115T SL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283733 | 275/60R20 | 680 A/A | 7.5 - 9.5 | 11.0 on 8.0 | 33.0 | 41.8 | 13.5 | 2679 | - | 51 | 115T | BSW | SL | 248.04 | 8808956300364 | - |
LT275/55R20 120/117S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2289943 | LT275/55R20 | 0.0 | 8.0 - 9.5 | 11.2 on 8.5 | 31.9 | 52.9 | 16.0 | 3085 | 2835 | 80 | 120/117S | BSW | LRE / 10-Ply | 274.54 | 8808956299866 | - |
LT275/60R20 119/116S LRD / 8-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2345743 | LT275/60R20 | 0.0 | 8.0 - 9.5 | 11.0 on 8.0 | 33.0 | 53.1 | 16.0 | 3000 | 2755 | 65 | 119/116S | BSW | LRD / 8-Ply | 355.1 | 8808956299873 | - |
LT275/65R20 126/123S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283833 | LT275/65R20 | 0.0 | 8.0 - 9.5 | 11.0 on 8.0 | 34.1 | 55.4 | 16.0 | 3750 | 3415 | 80 | 126/123S | BSW | LRE / 10-Ply | 360.4 | 8808956300388 | - |
LT285/55R20 122/119R LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290053 | LT285/55R20 | 0.0 | 8.5 - 10.0 | 11.7 on 9.0 | 32.4 | 56.2 | 16.0 | 3305 | 3000 | 80 | 122/119R | BSW | LRE / 10-Ply | 366.76 | 8808956299880 | - |
LT285/60R20 125/122S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290073 | LT285/60R20 | 0.0 | 8.5 - 10.0 | 11.5 on 8.5 | 33.5 | 52.9 | 16.0 | 3640 | 3305 | 80 | 125/122S | BSW | LRE / 10-Ply | 360.4 | 8808956372248 | - |
LT285/65R20 127/124S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2345753 | LT285/65R20 | 0.0 | 8.5 - 10.0 | 11.5 on 8.5 | 34.6 | 59.3 | 16.0 | 3860 | 3525 | 80 | 127/124S | BSW | LRE / 10-Ply | 371.0 | 8808956299897 | - |
LT295/60R20 126/123S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2345763 | LT295/60R20 | 0.0 | 8.5 - 10.5 | 11.8 on 8.5 | 33.9 | 62.2 | 16.0 | 3750 | 3415 | 80 | 126/123S | BSW | LRE / 10-Ply | 376.3 | 8808956299903 | - |
LT305/55R20 121/118S LRE / 10-Ply
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2290023 | LT305/55R20 | 0.0 | 9.0 - 11.0 | 12.4 on 9.5 | 33.2 | 61.2 | 16.0 | 3195 | 2918 | 65 | 121/118S | BSW | LRE / 10-Ply | 390.08 | 8808956300647 | - |
22 Inch (1 sizes)
285/45R22 114T XL
| Product Code | Tire Size | UTQG | Rim Width Range (in.) | Section Width on Measured Rim Width | Overall Diameter | Tire Weight (lb) | Tread Depth (1/32") | Max Load Single | Max Load Double | Max Inflation (psi) | Service Desc. | Sidewall | Construction | MAP Price($) | UPC | Static Loaded Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2345603 | 285/45R22 | 680 A/A | 9.0 - 10.5 | 11.2 on 9.5 | 32.1 | 43.8 | 11.7 | 2601 | - | 50 | 114T | BSW | XL | 376.3 | 8808956300654 | - |
