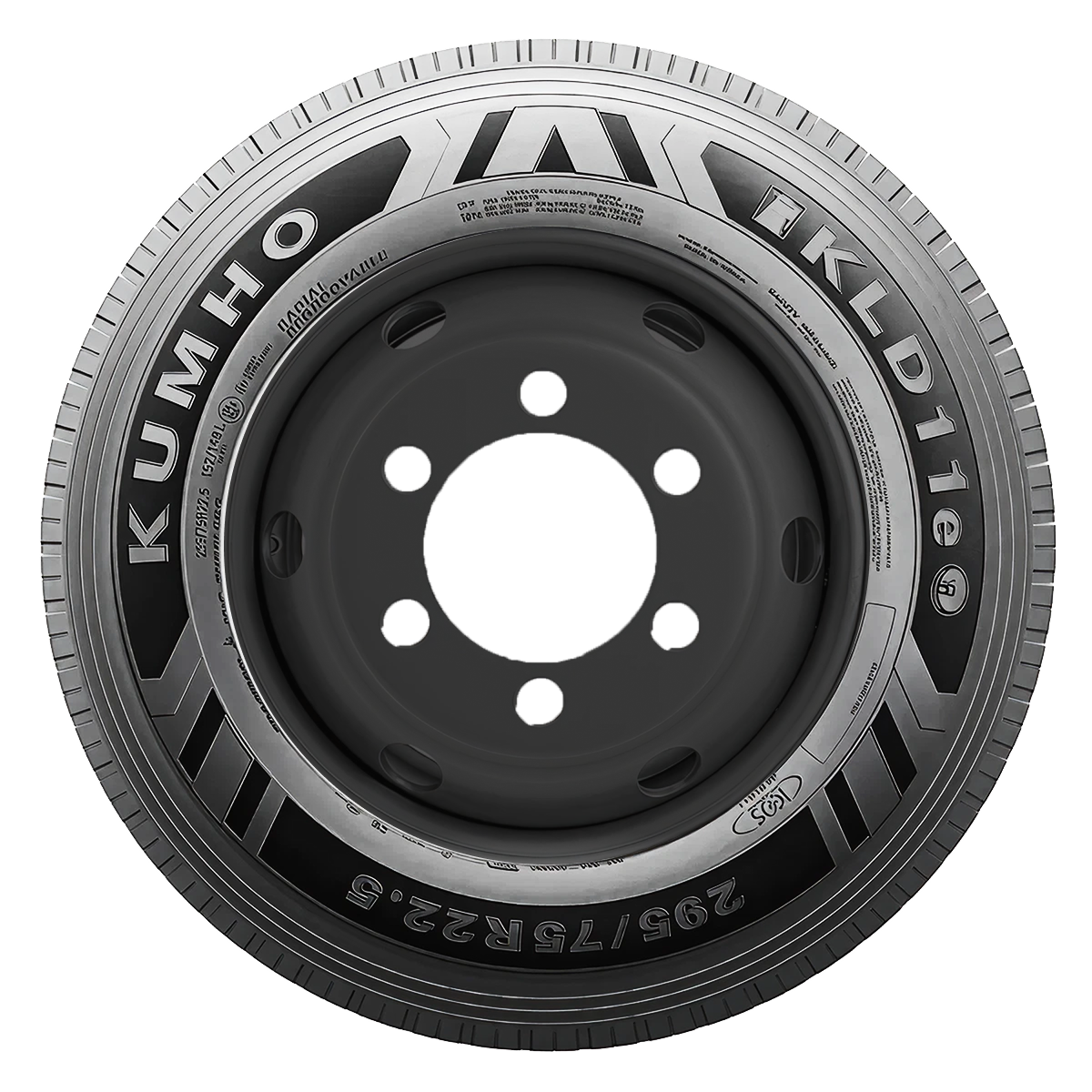

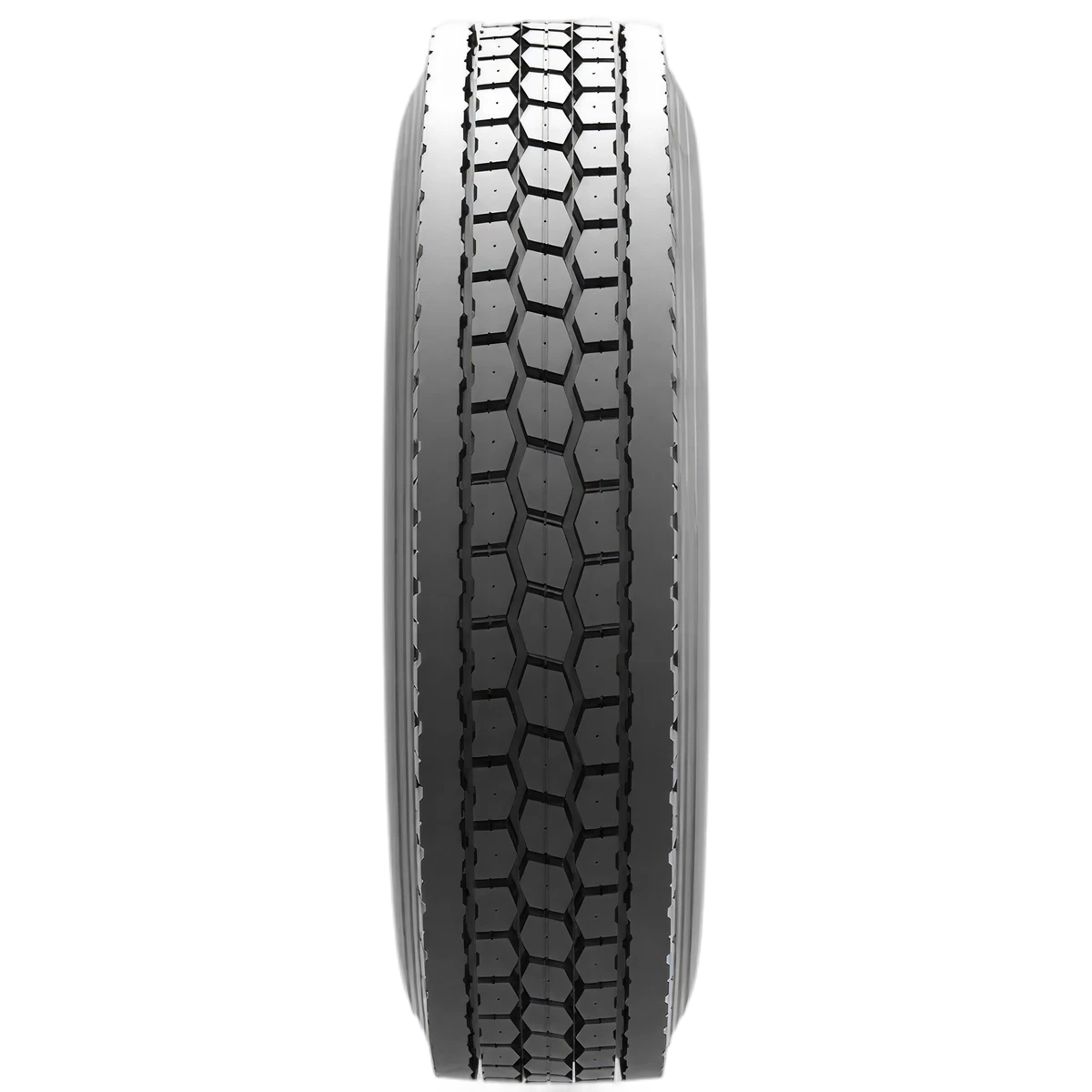

KLD11e (Smartway Certified)
Drive Axle Use
Ideal for high horsepower vehicles including EVs
The KLD11e is engineered to deliver longer mileage, enhanced durability, and improved fuel economy on any road it travels. Designed for reliable performance, it provides excellent traction and confidence in a wide range of weather conditions.
Tire Highlights
- Improved fuel efficiency
- Long tread life
Features & Benefits
- Provides more uniform wear and improves fuel economy.
- Enhanced block stiffness to improve mileage.
- Provides traction in all weather conditions.
- Minimizes tread block edge wear and prevents irregular wear.
- Designed for a longer tread life and lower rolling resistance.
The Kumho Tire Warranty Program
NOTE:NOT VALID FOR OE TIRES
KUMHO MANUFACTURER'S WARRANTY+-
All Kumho commercial tires are covered for a minimum of 60 months from the date of purchase. Long haul Smartway verified tires have coverage for 72 months.
Size & Technical Data
22.5 Inch (2 sizes)
11R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2301283 | 11R22.5 | 6005 @ 120 | 6610 @ 120 | 8.2 | 7.5 | 41.7 | 16 (H) | 484 | 10.8 | ● | 123.5 | 26.0 |
295/75R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2245933 | 295/75R22.5 | 5675 @ 110 | 6175 @ 110 | 9.0 | 8.2 | 40.8 | 14 (G) | 490 | 11.5 | ● | 117.9 | 26.0 |
24.5 Inch (2 sizes)
11R24.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2301293 | 11R24.5 | 6610 @ 120 | 7160 @ 120 | 8.2 | 7.5 | 43.5 | 16 (H) | 463 | 10.8 | ● | 131.5 | 26.0 |
285/75R24.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2261353 | 285/75R24.5 | 5675 @ 110 | 6175 @ 110 | 8.2 | 7.5 | 41.9 | 14 (G) | 495 | 10.9 | ● | 120.6 | 26.0 |
