KLD02e (Smartway Certified)
Drive Axle Use
Ideal for high horsepower vehicles including EVs
The KLD02(e) is a long running, maximum mileage tire. Advancements in casing and tread technology place it at the top of the list for line-haul and regional drive applications.
Tire Highlights
- Strong traction
- Long, even wear
Features & Benefits

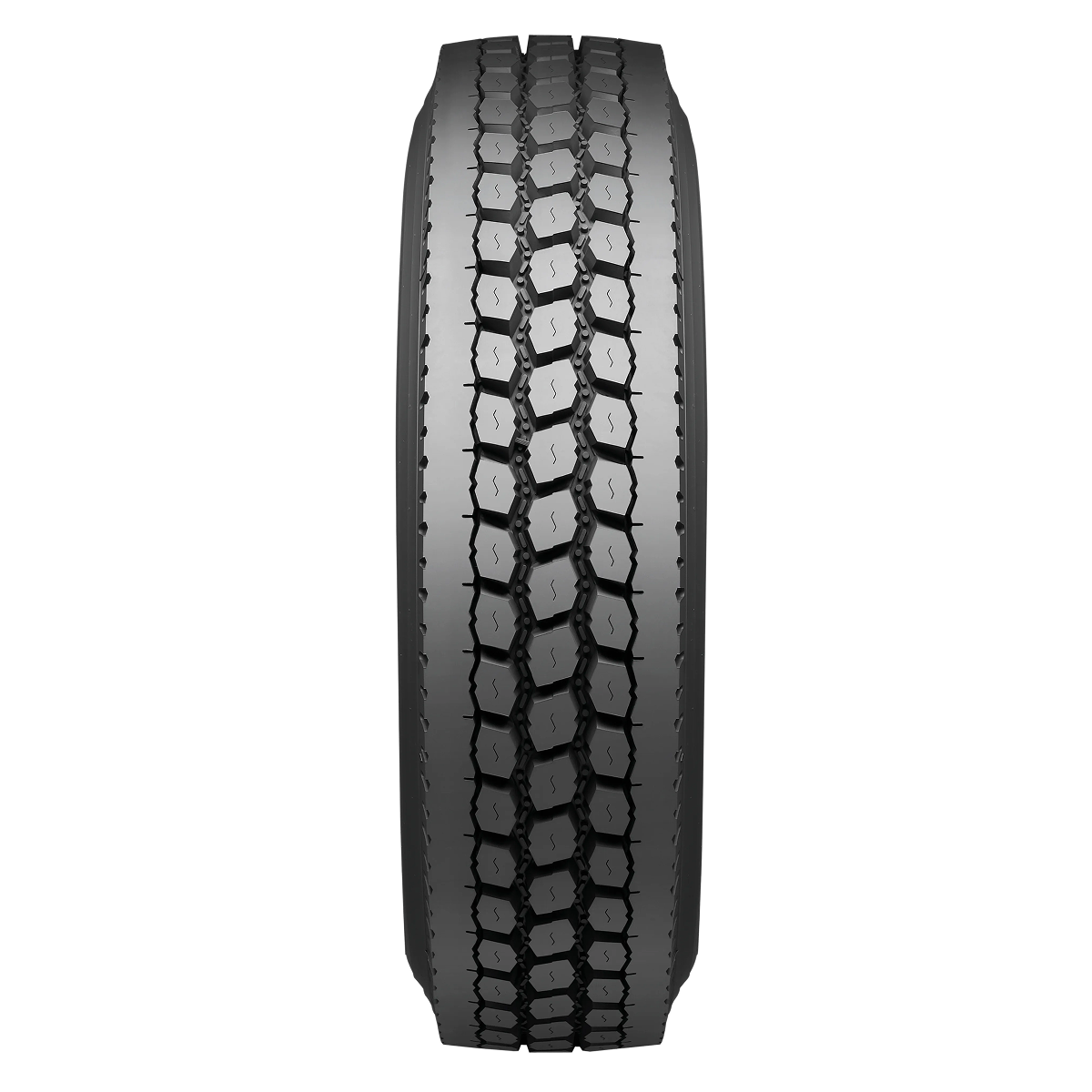

- Outstanding traction and wear resistance are provided by the closed shoulder ribs with an intermediate support block design.
- Excellent wet and dry traction due to its 30/32" molded rib/lug pattern and aggressive center rib buttons.
- Increased high-speed stability achieved through an advanced casing profile, which improves overall contact pressure.
- Enhanced retread ability comes from groove bottom protectors designed to prevent stone drilling and stone retention.
The Kumho Tire Warranty Program
NOTE:NOT VALID FOR OE TIRES
KUMHO MANUFACTURER'S WARRANTY+-
All Kumho commercial tires are covered for a minimum of 60 months from the date of purchase. Long haul Smartway verified tires have coverage for 72 months.
Size & Technical Data
22.5 Inch (2 sizes)
11R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2106913 | 11R22.5 | 5840 @ 105 | 6175 @ 105 | 8.2 | 7.5 | 42.1 | 14 (G) | 494 | 10.9 | - | 129.8 | 30.0 |
295/75R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2144903 | 295/75R22.5 | 5675 @ 110 | 6175 @ 110 | 9.0 | 8.2 | 41.1 | 14 (G) | 506 | 11.3 | ● | 123.5 | 30.0 |
24.5 Inch (2 sizes)
11R24.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2301303 | 11R24.5 | 6610 @ 120 | 7160 @ 120 | 8.2 | 7.5 | 42.1 | 16 (H) | 479 | 10.9 | - | 138.0 | 30.0 |
285/75R24.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2104753 | 285/75R24.5 | 5675 @ 110 | 6175 @ 110 | 8.2 | 7.5 | 42.2 | 14 (G) | 492 | 10.7 | - | 125.4 | 30.0 |
