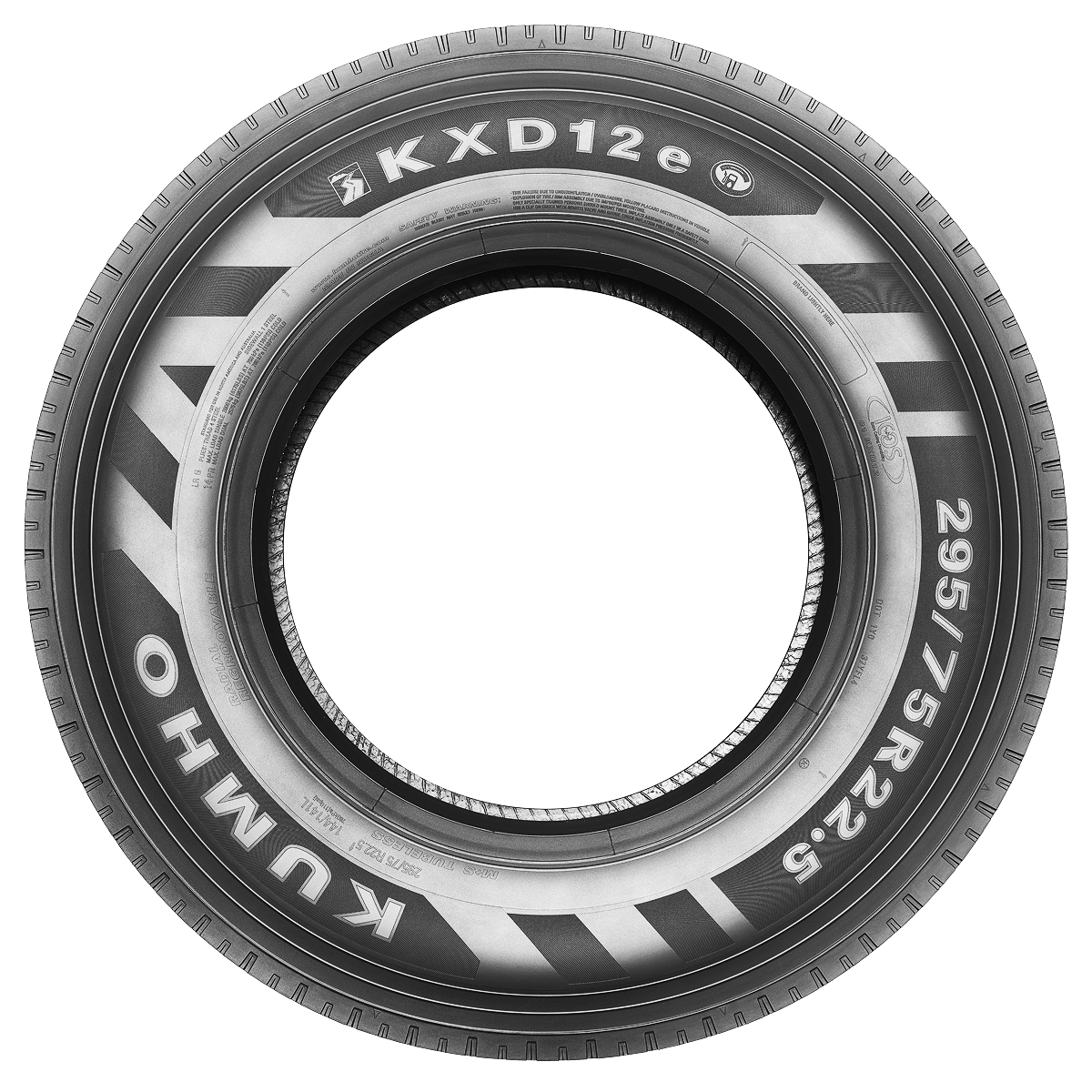

KXD12e
Drive Axle Use
Ideal for high horsepower vehicles including EVs
The KXD12 is built for endurance and control. This high-traction tire delivers reliable performance for both long-haul and regional applications, providing dependable grip and excellent snow traction. With 3PMSF certification, the KXD12 delivers confidence in severe winter conditions—when it matters most.
Tire Highlights
- Strong traction
- Snow performance
Features & Benefits

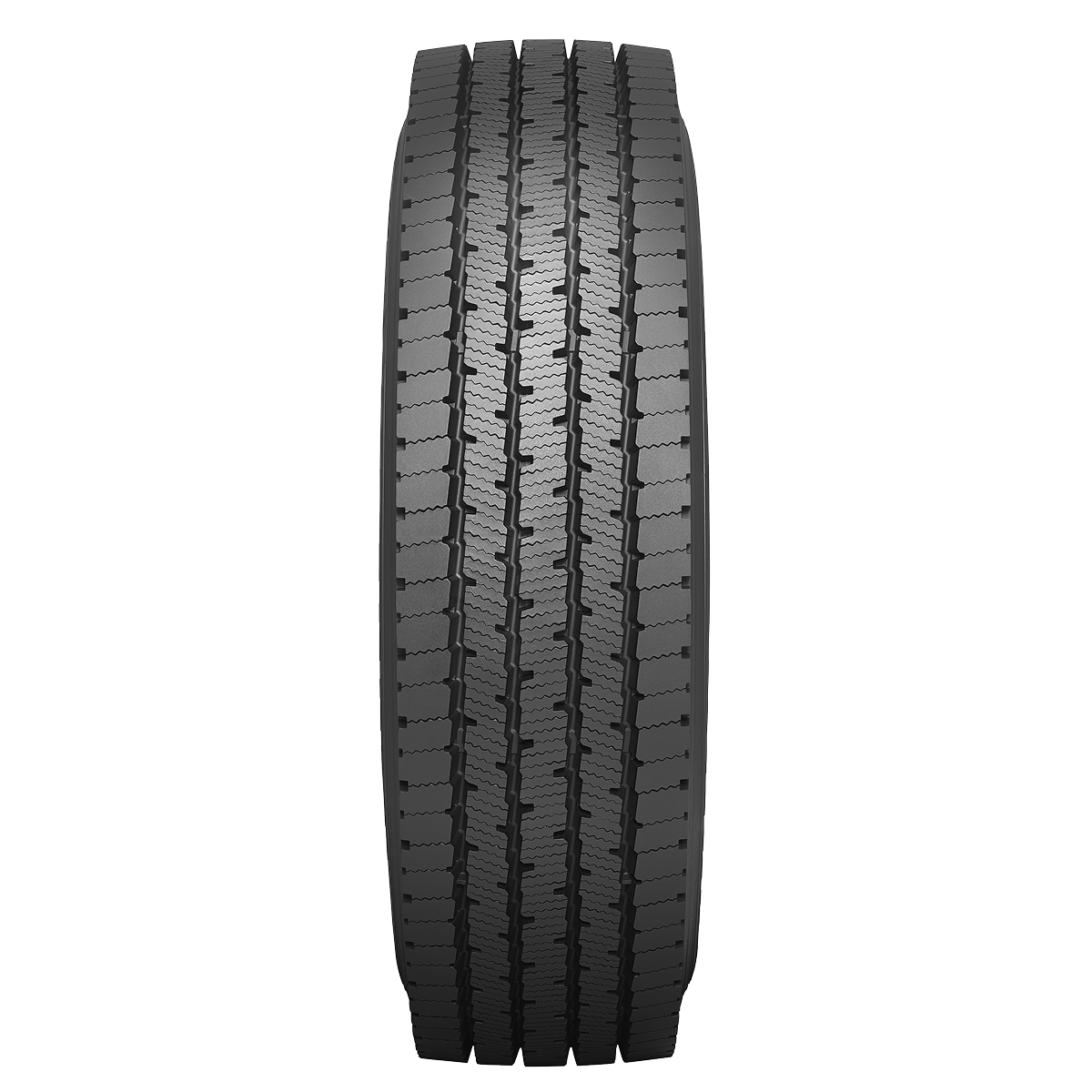

- The semi-block pattern shape for Super Regional (Long & Regional) drive pattern.
- Optimized pattern design for mileage & traction performances.
- Adopt the zig-zag sipes for snow & traction performance & consists of shapes with different depths.
- Enhanced groove shape to prevent stone holding & stone drilling.
The Kumho Tire Warranty Program
NOTE:NOT VALID FOR OE TIRES
KUMHO MANUFACTURER'S WARRANTY+-
All Kumho commercial tires are covered for a minimum of 60 months from the date of purchase. Long haul Smartway verified tires have coverage for 72 months.
Size & Technical Data
22.5 Inch (2 sizes)
11R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2278553 | 11R22.5 | 6005 @ 120 | 6610 @ 120 | 8.2 | 7.5 | 41.5 | 16 | 501 | 10.8 | No | 59.4 | 25.8 |
295/75R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2278563 | 295/75R22.5 | 5675 @ 110 | 6175 @ 110 | 9.0 | 8.2 | 40.6 | 14 | 511 | 11.3 | No | 56.3 | 24.6 |
24.5 Inch (1 sizes)
11R24.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2283603 | 11R24.5 | 6610 @ 120 | 7160 @ 120 | 8.2 | 7.5 | 43.5 | 16 | 477 | 10.8 | No | 63.2 | 25.8 |
