KRD23
Drive Axle Use
Ideal for high horsepower vehicles including EVs
The ideal regional drive tire for commercial trucks, the KRD23 was designed to provide high mileage capabilities with even wear and durability to withstand regional driving conditions.
Tire Highlights
- High mileage
- Even wear
Features & Benefits
- The innovative later main groove design and application of shoulder tie-bars provide outstanding traction and high mileage.

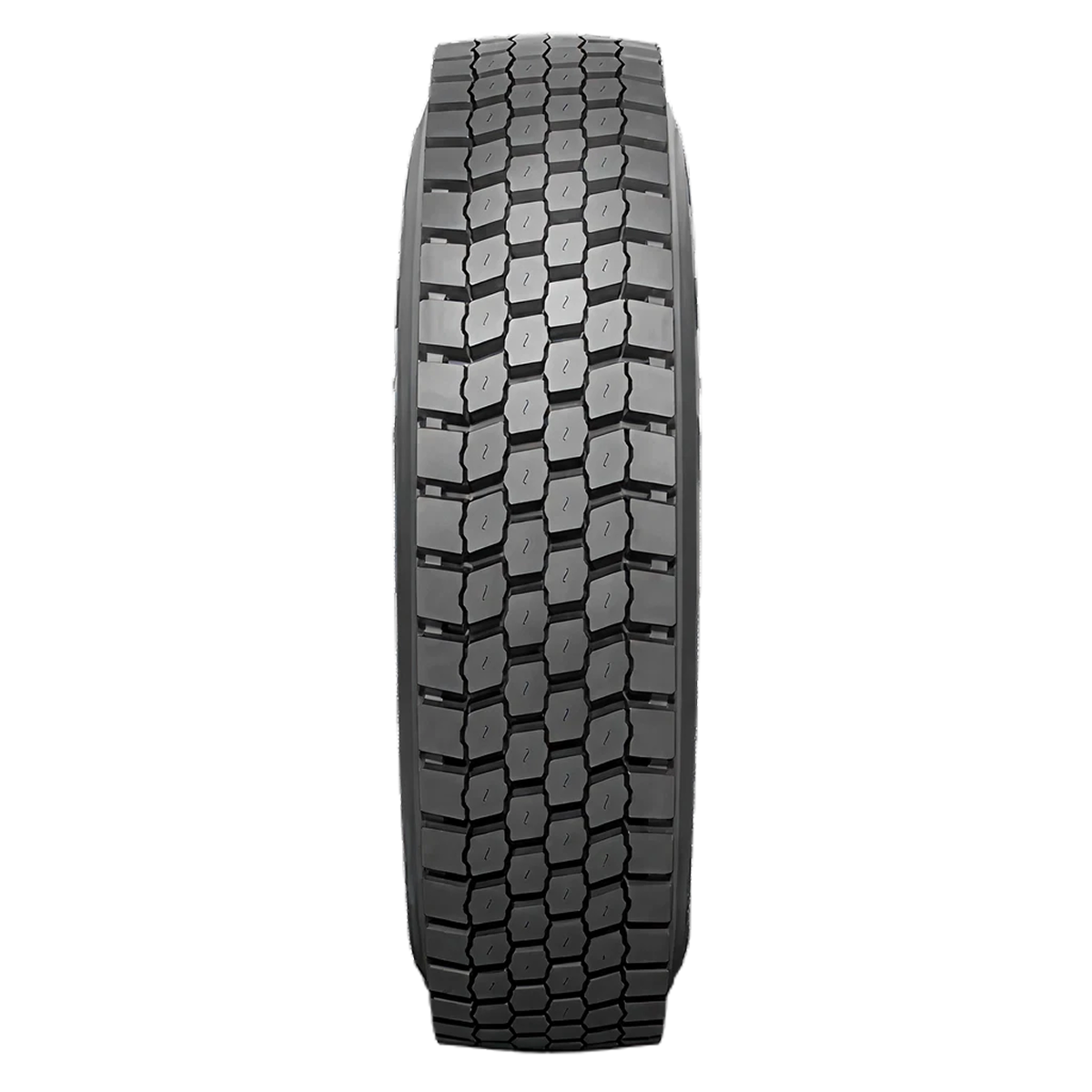

- Zig-zag center block arrangement creates even contact pressure distribution to facilitate even wear characteristics.
- The woven longitudinal groove design and tie-bars minimize block movement to prevent heel and toe wear and stone.
- Application of anti-cutting TWI pins on the tread ribs provide flexibility to side forces as well a cut and chip resistance.
The Kumho Tire Warranty Program
NOTE:NOT VALID FOR OE TIRES
KUMHO MANUFACTURER'S WARRANTY+-
All Kumho commercial tires are covered for a minimum of 60 months from the date of purchase. Long haul Smartway verified tires have coverage for 72 months.
Size & Technical Data
19.5 Inch (2 sizes)
225/70R19.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2321683 | 225/70R19.5 | 3750 @ 110 | 3970 @ 110 | 6.8 | 6.0 | 32.1 | 14 (G) | 646 | 8.7 | - | 70.0 | 20.2 |
245/70R195
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2363133 | 245/70R195 | 4675 @ 120 | 4940 @ 120 | 7.5 | 7.5 | 33.4 | 16 (H) | 622 | 9.4 | - | 82.5 | 16.0 |
22.5 Inch (2 sizes)
11R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2243943 | 11R22.5 | 6005 @ 120 | 6610 @ 120 | 8.2 | 8.2 | 42.1 | 16 (H) | 479 | 10.9 | - | 132.0 | 28.0 |
295/75 R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2301043 | 295/75 R22.5 | 5675 @ 110 | 6175 @ 110 | 9.0 | 9.0 | 40.7 | 14 (G) | 510 | 10.9 | - | 121.6 | 28.0 |
24.5 Inch (1 sizes)
11 R24.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2301873 | 11 R24.5 | 6610 @ 120 | 7160 @ 120 | 8.2 | 8.2 | 43.9 | 16 (H) | 473 | 10.8 | - | 140.7 | 28.0 |
