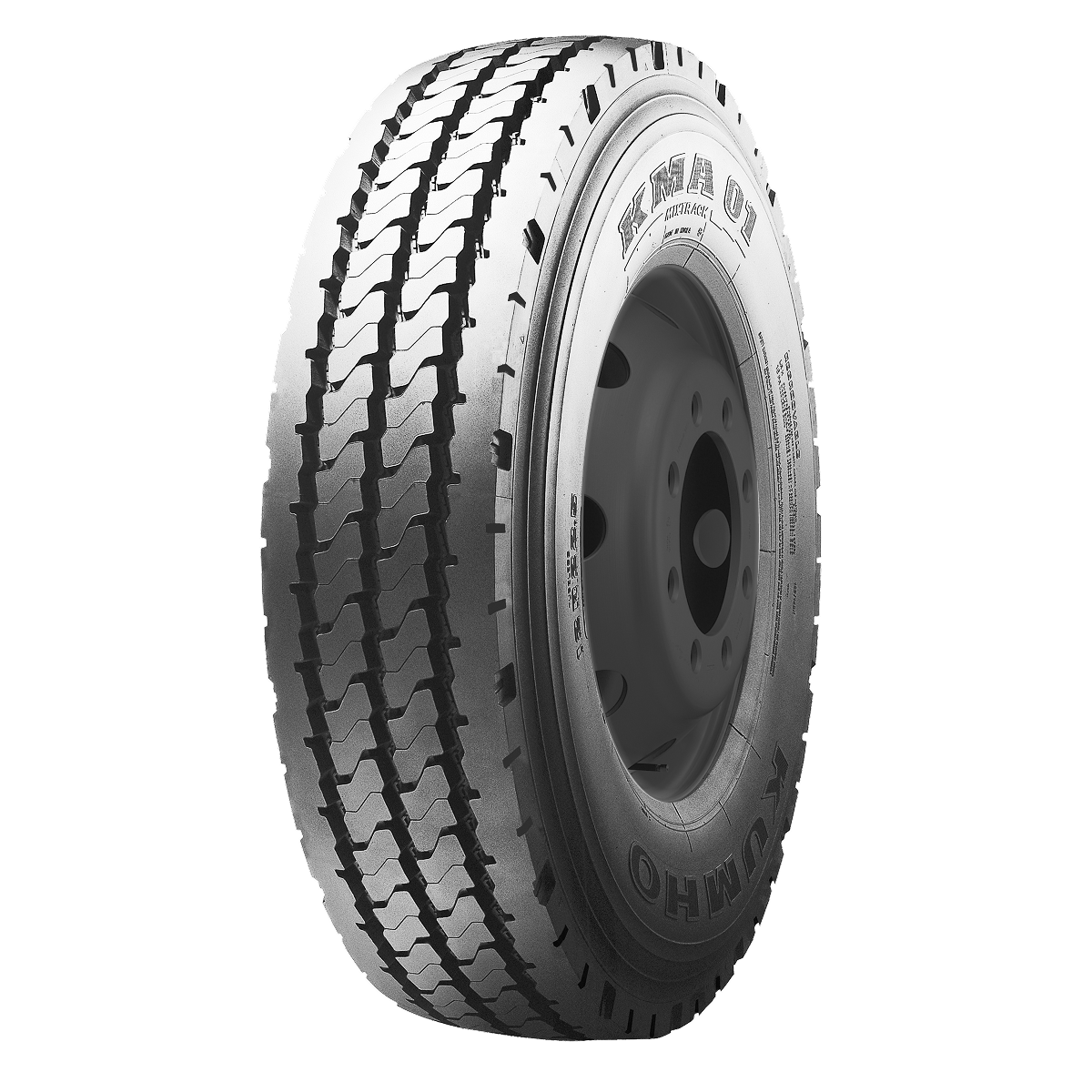

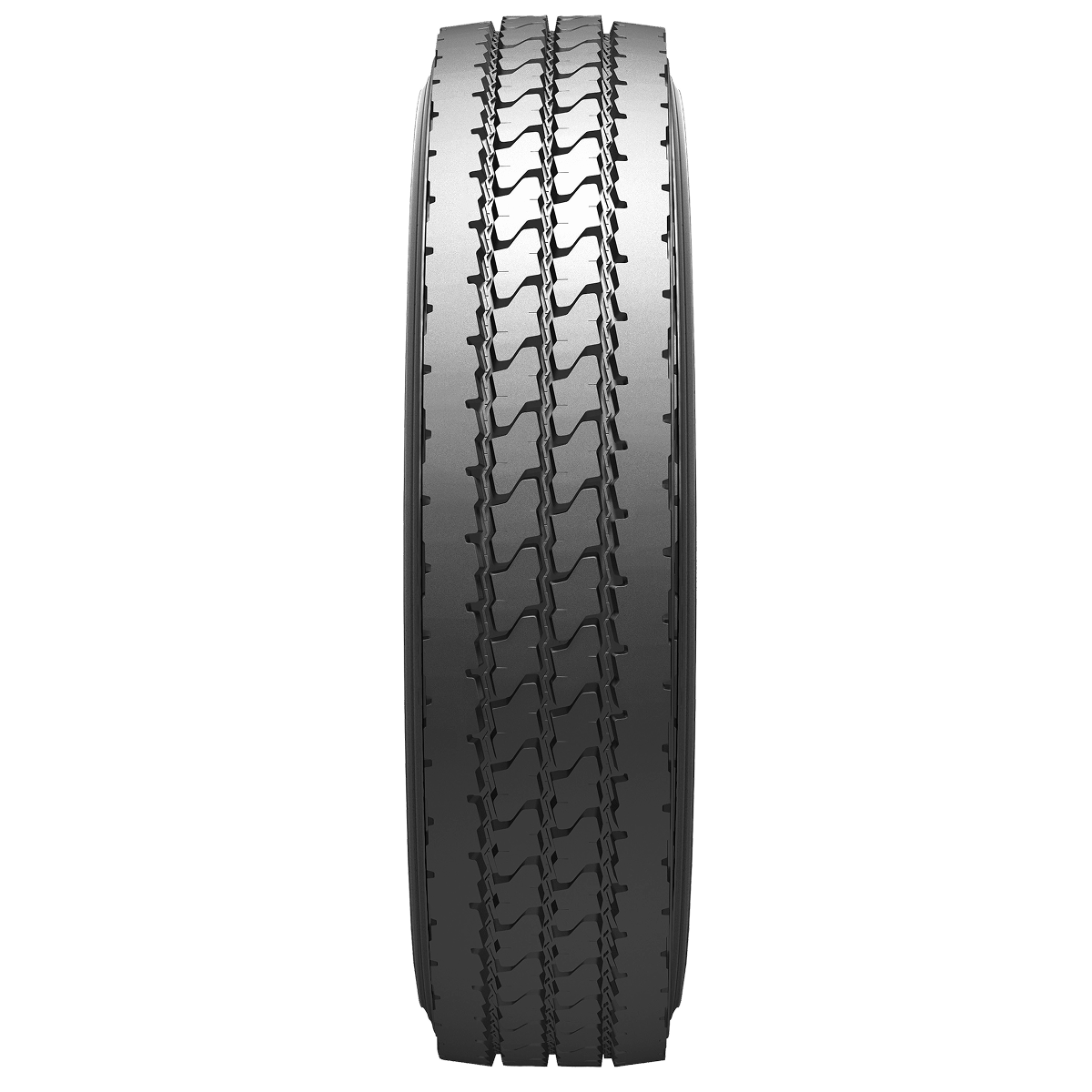

KMA01
All-Position Use
Ideal for high horsepower vehicles including EVs
The KMA01 is a purpose-built on/off road tire that provides excellent cut and chip resistant as well as exceptional overall wear characteristics. With a sturdy four-rib design, the primary wheel positions for the KMA01 are steer and trailer.
Tire Highlights
- Cut & chip resistance
- Long removal mileage
Features & Benefits
- Driving stability and increased removal mileage are provided by superior bead strength and tire uniformity.
- Enhanced casing integrity and uniformity are the results of an advanced belt package, providing higher retread quality.
- Excellent removal mileage, the benefit of a durable, cut and chip resistant compound molded into a closed shoulder and block pattern.
- Enhanced retreadability comes from groove bottom protectors designed to prevent stone drilling and stone retention.
The Kumho Tire Warranty Program
NOTE:NOT VALID FOR OE TIRES
KUMHO MANUFACTURER'S WARRANTY+-
All Kumho commercial tires are covered for a minimum of 60 months from the date of purchase. Long haul Smartway verified tires have coverage for 72 months.
Size & Technical Data
22.5 Inch (2 sizes)
11R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1825913 | 11R22.5 | 6005 @ 120 | 6610 @ 120 | 8.2 | 8.2 | 41.6 | 16 (H) | 500 | 10.9 | - | 128.1 | 23.0 |
315/80R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1804813 | 315/80R22.5 | 9090 @ 130 | 10200 @ 130 | 9.0 | 9.0 | 42.7 | 20 (L) | 487 | 10.9 | - | 155.9 | 23.0 |
24.5 Inch (1 sizes)
11R24.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1826013 | 11R24.5 | 6610 @ 120 | 7160 @ 120 | 8.2 | 8.2 | 44.1 | 16 (H) | 471 | 12.1 | - | 136.3 | 23.0 |
