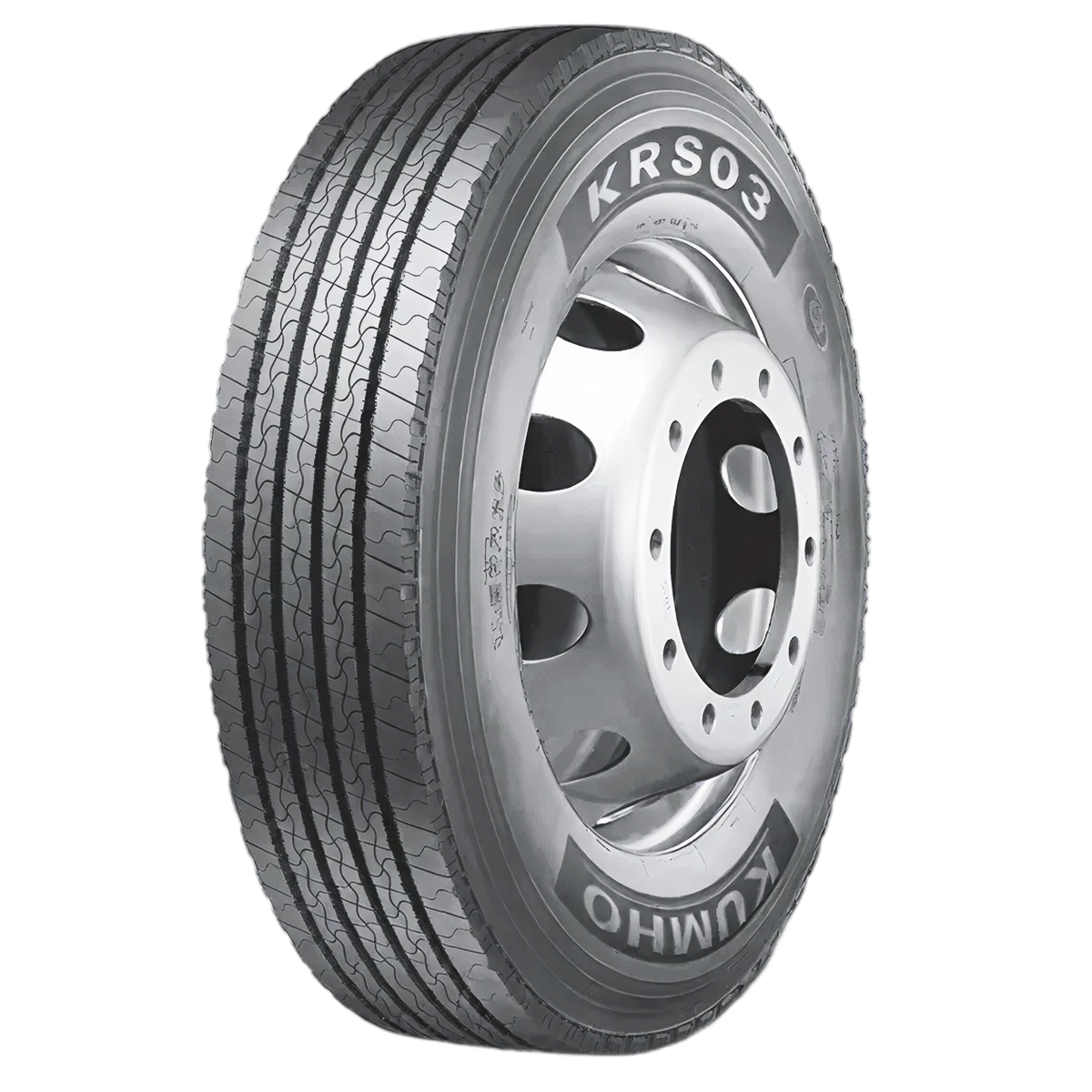

KRS03
Steer Axle use
Ideal for high horsepower vehicles including EVs
The KRS03 is the perfect choice for regional and pickup and delivery applications. This all-position rib tire was designed ideally for small and medium duty trucks using 19.5" and 22.5" tires.
Tire Highlights
- Wet traction
- Cost efficiency
Features & Benefits

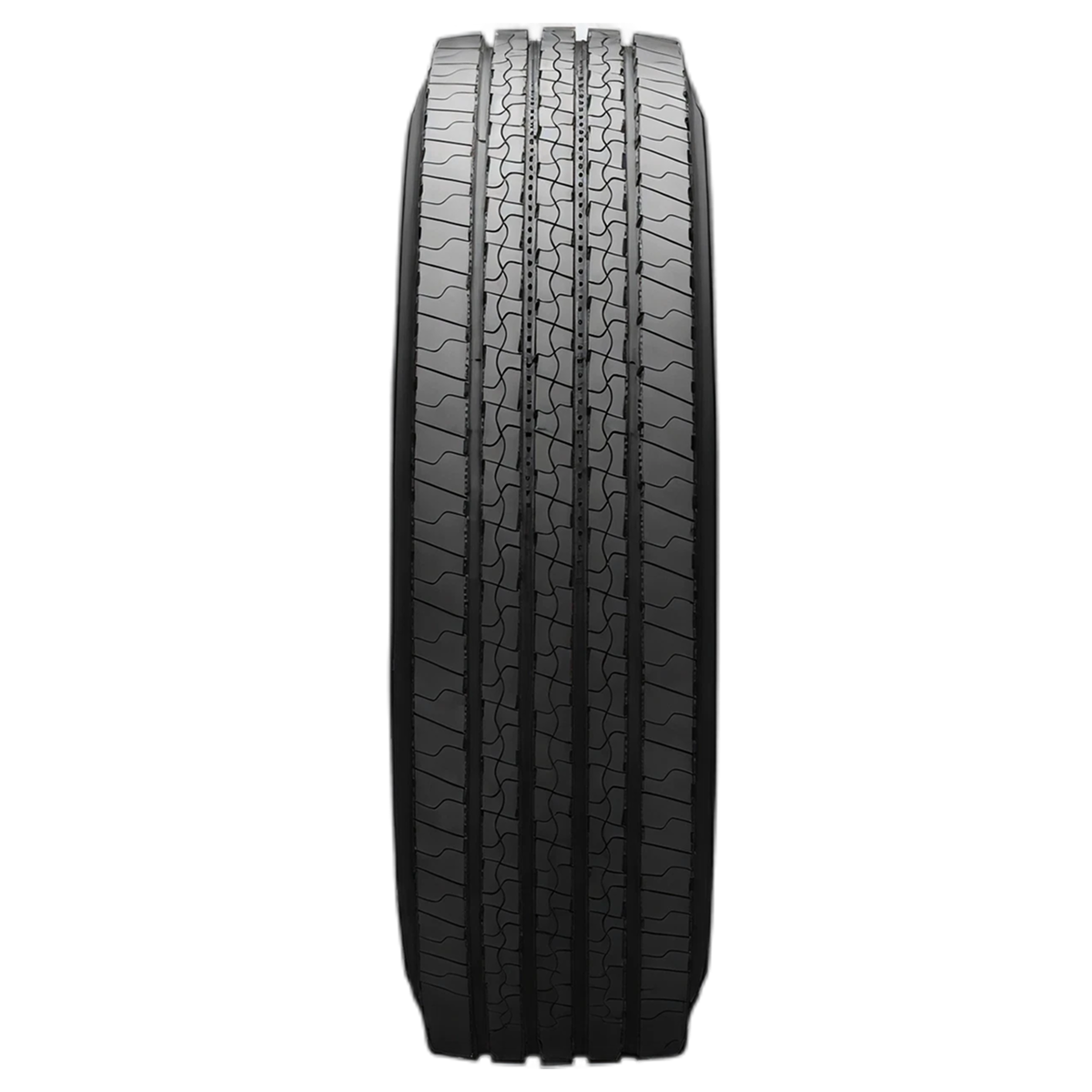

- Reduced progress of irregular wear due to lateral multi-sipes in the straight ribs.
- Improved hydroplaning resistance and wet traction from S-shaped sipes in straight ribs.
- Better traction and less stone holding are enhanced by the application of variable geometry groove edges.
- Excellent cost-per-mile, outstanding stability and confident handling, benefits of a wide, deep and efficient tread pattern.
The Kumho Tire Warranty Program
NOTE:NOT VALID FOR OE TIRES
KUMHO MANUFACTURER'S WARRANTY+-
All Kumho commercial tires are covered for a minimum of 60 months from the date of purchase. Long haul Smartway verified tires have coverage for 72 months.
Size & Technical Data
19.5 Inch (1 sizes)
245/70R19.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1693213 | 245/70R19.5 | 4375 @ 110 | 4540 @ 110 | 7.5 | 7.5 | 33.4 | 14 (G) | 622 | 10.8 | - | 79.6 | 17.0 |
22.5 Inch (1 sizes)
275/70R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1646013 | 275/70R22.5 | 6395 @ 125 | 6945 @ 125 | 8.2 | 7.5 | 38.0 | 16 (H) | 547 | 9.5 | - | 109.6 | 20.0 |
