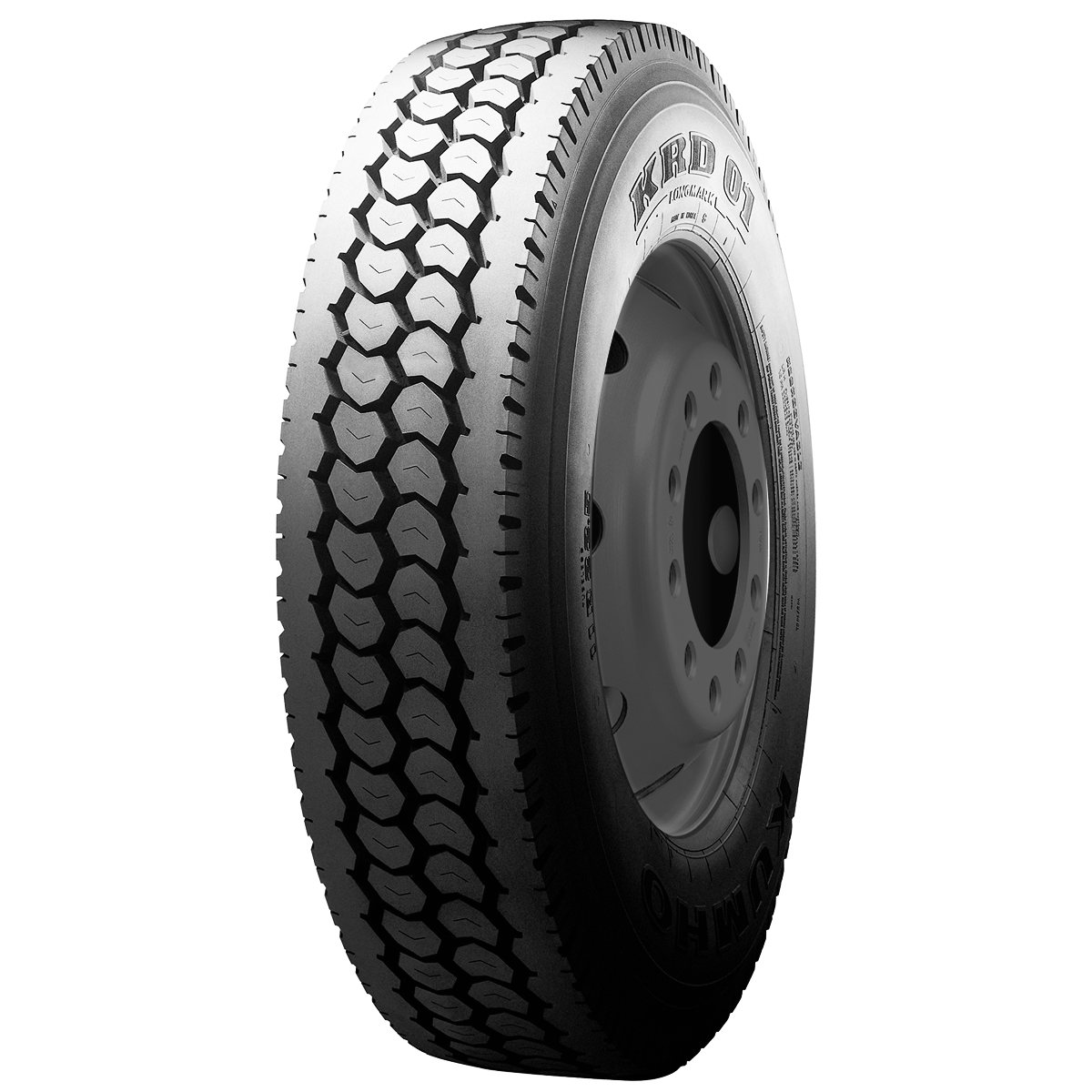

KRD01
Drive Axle Use
Ideal for high horsepower vehicles including EVs
The KRD01 was specifically designed and engineered for maximum tread life and long performance in high scrub, fast wear applications. A great choice for regional and pickup and delivery use, the tire's wider and flatter tread arc produces improved and more uniform tread wear characteristics.
Tire Highlights
- Long tread life
- Uniform wear
Features & Benefits
- Improved durability and overall wear because of a new mold shape featuring a flatter tread radius.

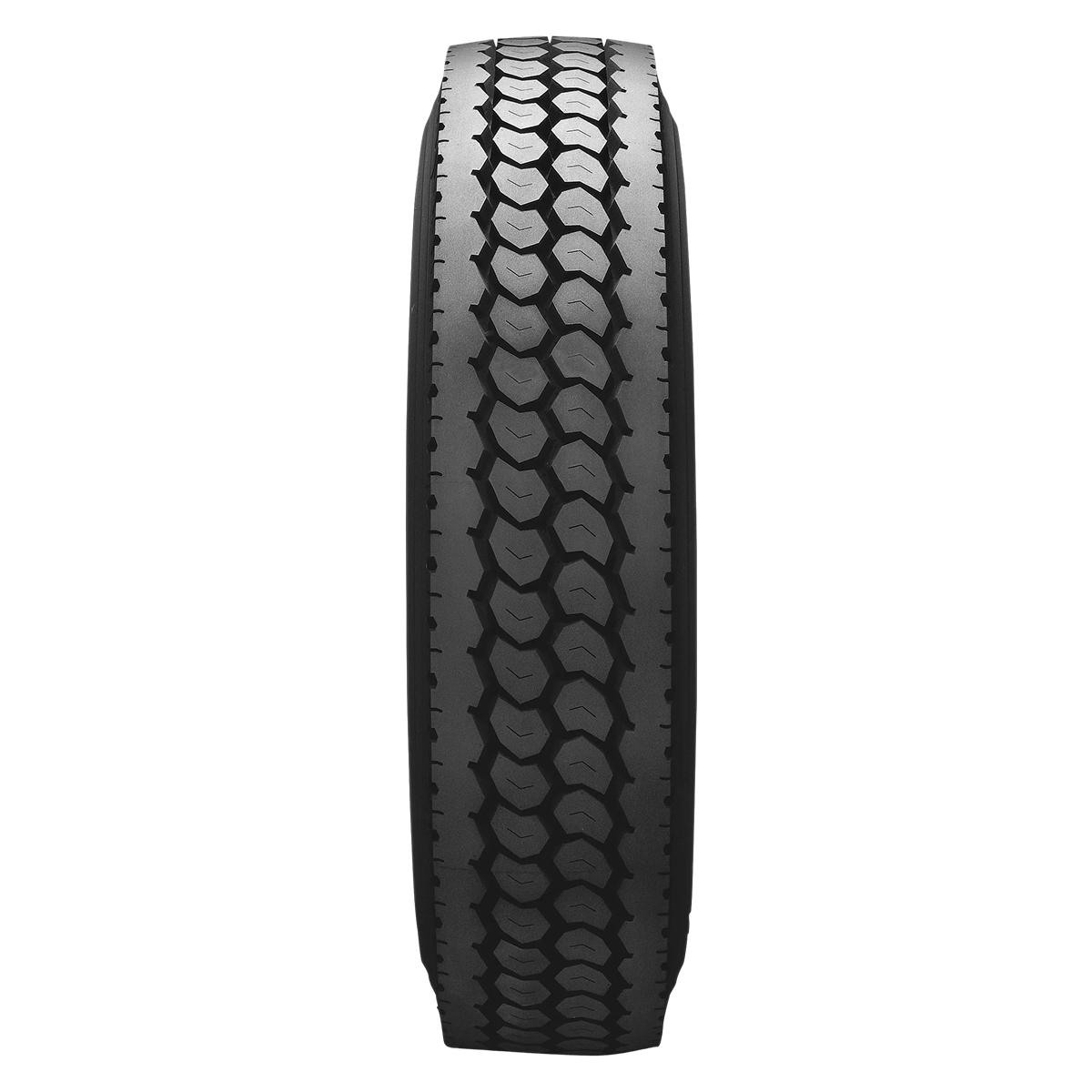

- Low running temps and long wear are achieved through improved compounding and an extra deep 28/32" tread pattern.
- Minimized stone holding and drilling, the benefits of engineered stone protectors.
The Kumho Tire Warranty Program
NOTE:NOT VALID FOR OE TIRES
KUMHO MANUFACTURER'S WARRANTY+-
All Kumho commercial tires are covered for a minimum of 60 months from the date of purchase. Long haul Smartway verified tires have coverage for 72 months.
Size & Technical Data
22.5 Inch (2 sizes)
11R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1628113 | 11R22.5 | 6005 @ 120 | 6610 @ 120 | 8.2 | 7.5 | 41.9 | 16.0 | 496 | 10.9 | - | 129.9 | 28.0 |
295/75R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1658013 | 295/75R22.5 | 5675 @ 110 | 6175 @ 110 | 9.0 | 7.5 | 40.9 | 14.0 | 508 | 11.0 | - | 119.4 | 28.0 |
24.5 Inch (2 sizes)
11R24.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1648113 | 11R24.5 | 6610 @ 120 | 7160 @ 120 | 8.2 | 7.5 | 43.9 | 16.0 | 473 | 10.9 | - | 138.4 | 28.0 |
285/75R24.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1657913 | 285/75R24.5 | 5675 @ 110 | 6175 @ 110 | 8.2 | 7.5 | 42.1 | 14.0 | 494 | 10.6 | - | 124.4 | 28.0 |
