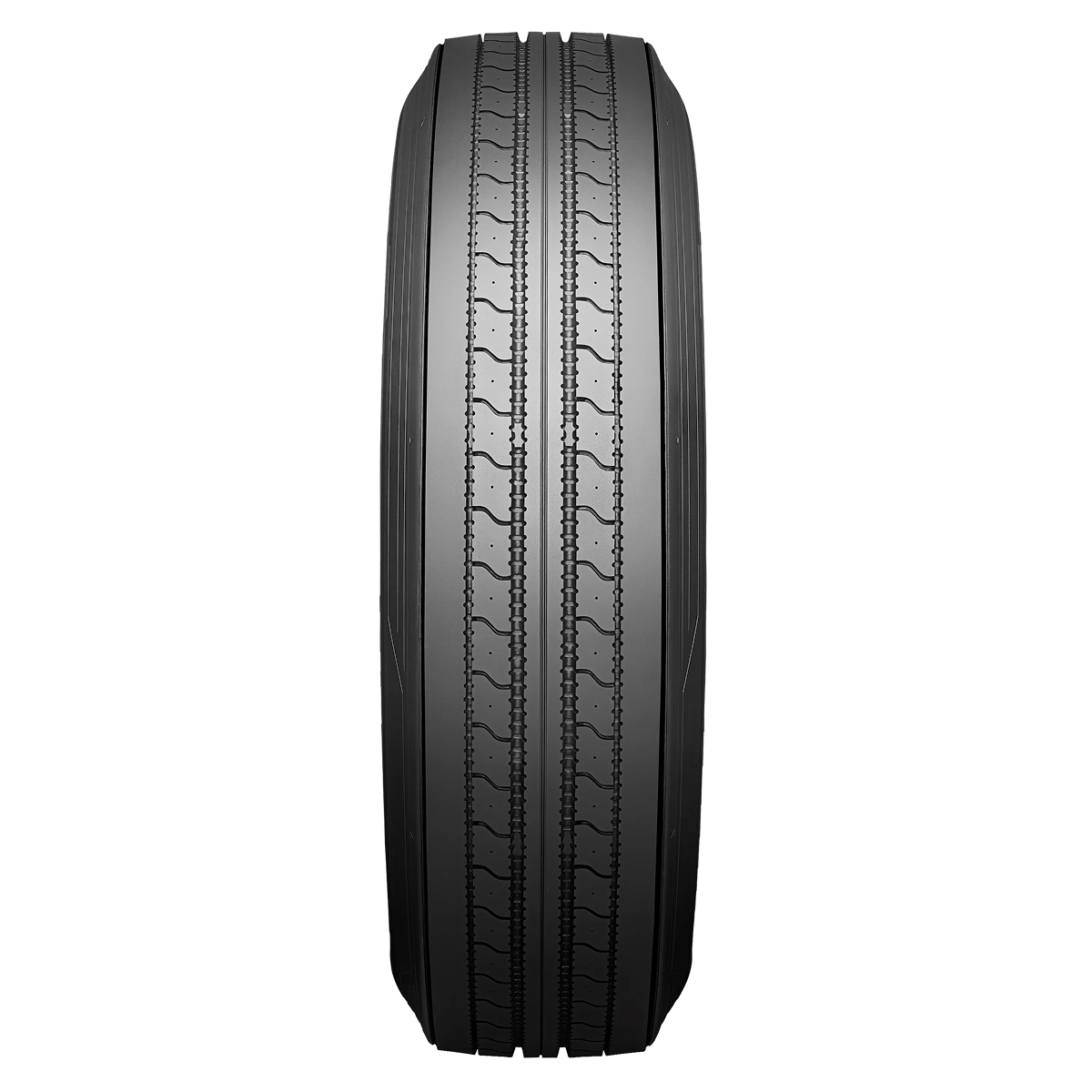

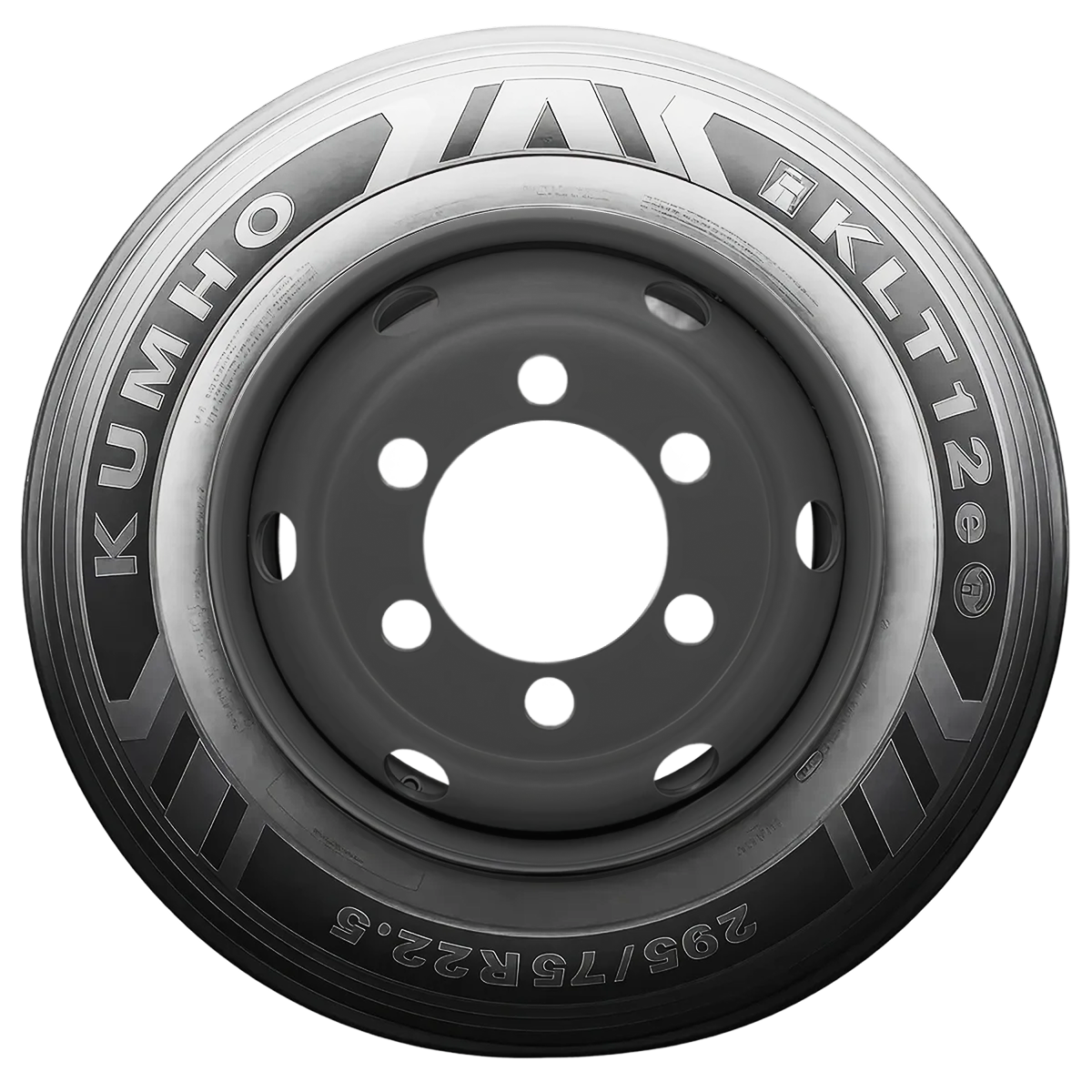

KLT12e
Trailer Axle Use
Low rolling resistance, even shoulder wear, and extended mileage
Designed primarily as an over-the-road trailer tire, the KLT12e delivers low rolling resistance, minimized shoulder wear, and longer mileage.
Tire Highlights
- High mileage
- Reduced shoulder wear
Features & Benefits
- Cut and chip-resistant and balanced wear.
- Wide and deep tread with balanced contact patch for high mileage.
- Application of angled square grooves to prevent abnormal wear.
The Kumho Tire Warranty Program
NOTE:NOT VALID FOR OE TIRES
KUMHO MANUFACTURER'S WARRANTY+-
All Kumho commercial tires are covered for a minimum of 60 months from the date of purchase. Long haul Smartway verified tires have coverage for 72 months.
Size & Technical Data
22.5 Inch (2 sizes)
11R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2246223 | 11R22.5 | 5840 @ 105 | 6175 @ 105 | 8.2 | 7.5 | 40.8 | 14 (G) | 509 | 10.9 | ● | 106.0 | 14.0 |
295/75R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2176123 | 295/75R22.5 | 5675 @ 110 | 6175 @ 110 | 8.2 | 8.2 | 39.8 | 14 (G) | 522 | 10.9 | ● | 101.3 | 13.0 |
24.5 Inch (2 sizes)
11R24.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2253313 | 11R24.5 | 6005 @ 105 | 6610 @ 105 | 8.2 | 7.5 | 44.1 | 16 (H) | 483 | 10.9 | ● | 113.2 | 14.0 |
285/75R24.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2246213 | 285/75R24.5 | 5675 @ 110 | 6175 @ 110 | 8.2 | 7.5 | 40.9 | 14 (G) | 508 | 10.6 | ● | 105.9 | 14.0 |
