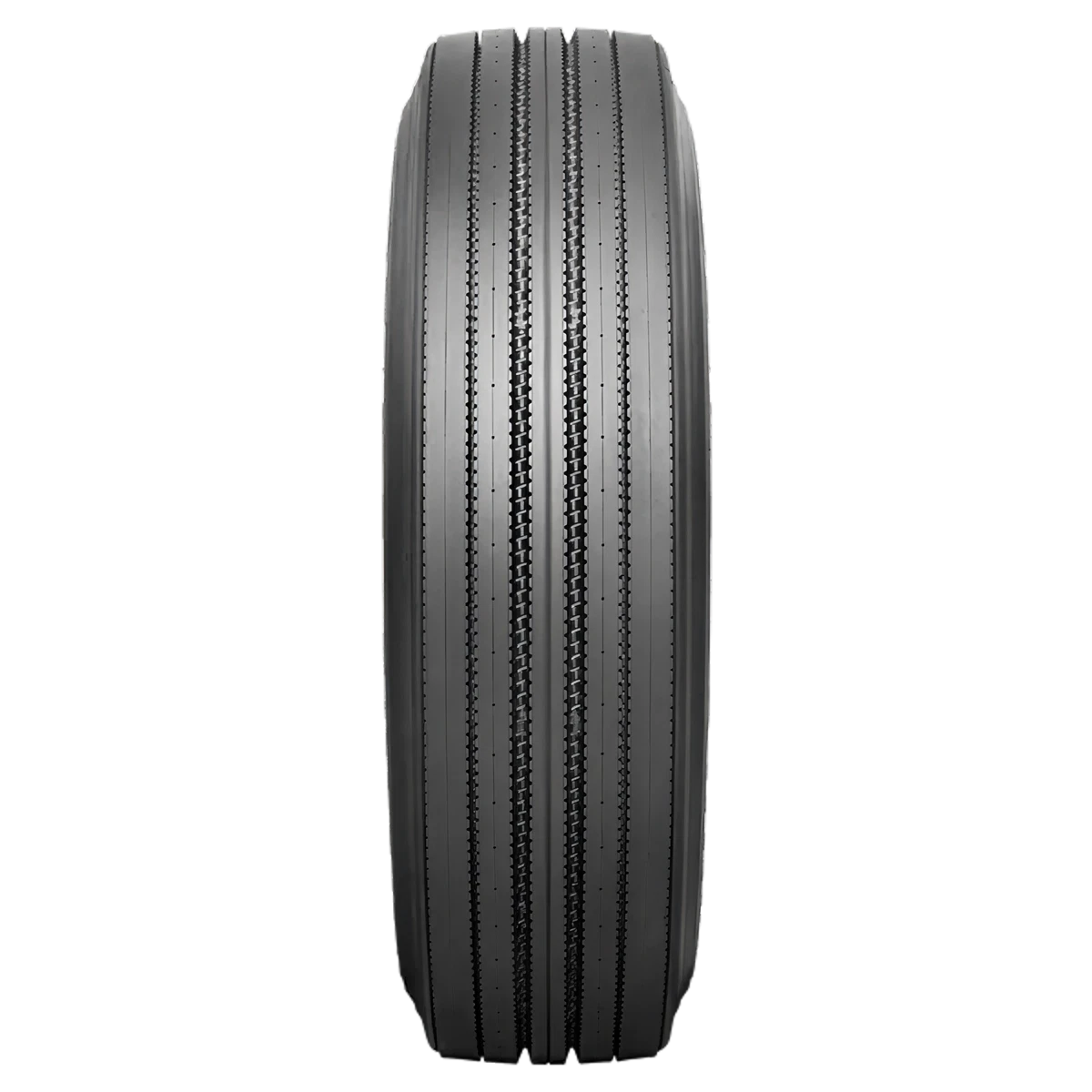

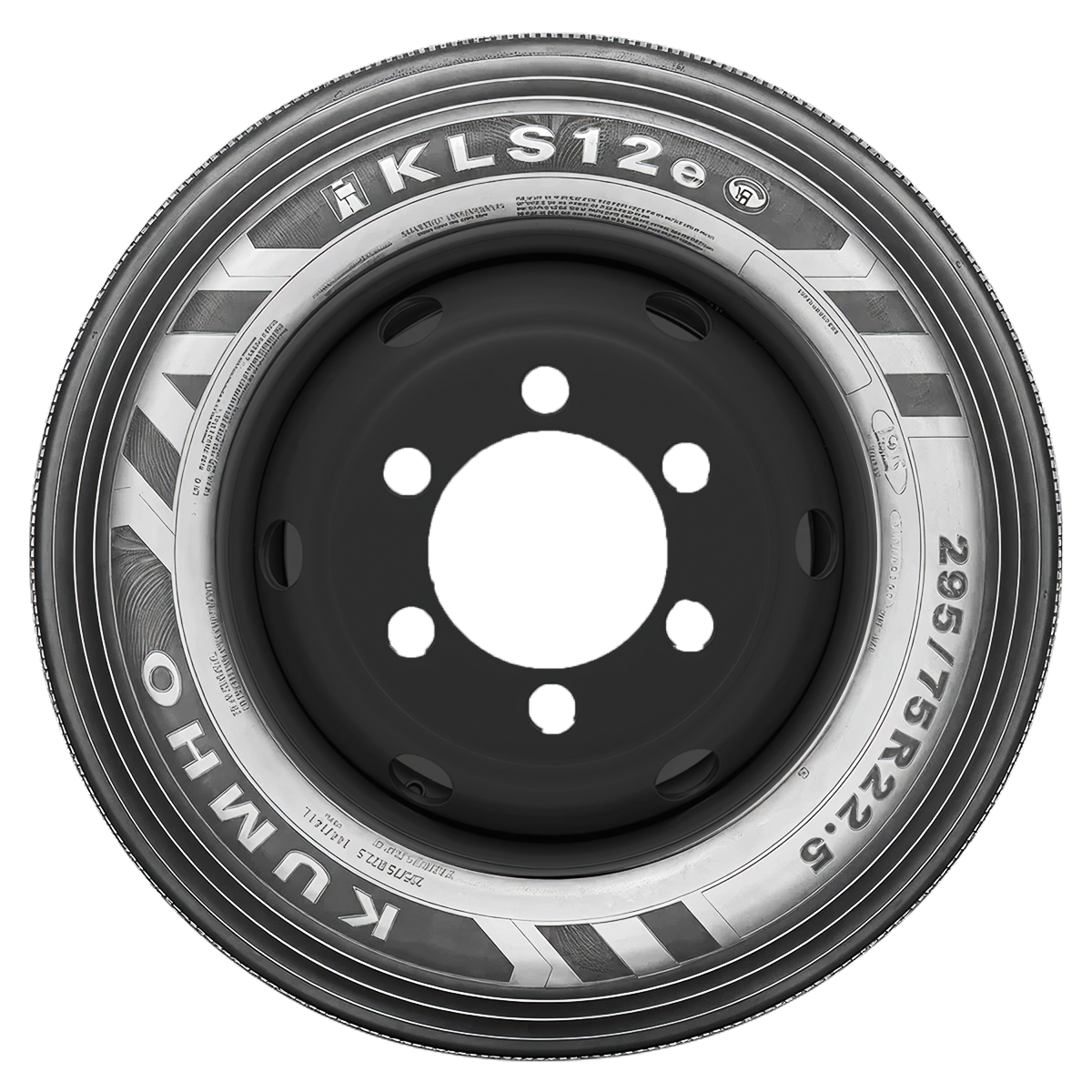

KLS12e (Smartway Certified)
Steer Axle Use
Optimized for high mileage, low rolling resistance, and long-lasting durability
The KLS12(e) is equipped with an advanced design and engineering characteristics that allows for higher mileage, low rolling resistance and durability in line haul steer applications
Tire Highlights
- Low rolling resistance
- Even wear
Features & Benefits
- Advanced decoupling groove design for resistance to cracking and tearing at the groove.
- Stiff shoulder blocks and balanced distribution of contact pressure for lower rolling resistance and even wear.
- Staggered interior tread design for prevention of stone drilling and heat dispersion.
The Kumho Tire Warranty Program
NOTE:NOT VALID FOR OE TIRES
KUMHO MANUFACTURER'S WARRANTY+-
All Kumho commercial tires are covered for a minimum of 60 months from the date of purchase. Long haul Smartway verified tires have coverage for 72 months.
Size & Technical Data
22.5 Inch (2 sizes)
11R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2301853 | 11R22.5 | 5675 @ 110 | 6175 @ 110 | 8.2 | 7.5 | 43.1 | 16.0 | 468 | 10.8 | ● | 122.7 | 19.0 |
295/75R22.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2301843 | 295/75R22.5 | 6610 @ 120 | 7160 @ 120 | 9.0 | 8.2 | 40.3 | 16.0 | 500 | 11.0 | ● | 115.4 | 19.0 |
24.5 Inch (2 sizes)
11R24.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2301863 | 11R24.5 | 6610 @ 120 | 7160 @ 120 | 8.2 | 7.5 | 43.1 | 16.0 | 481 | 10.8 | ● | 130.5 | 19.0 |
285/75R24.5
| Product Code | Tire Size | Max Load (lbs) @ Cold Inflation Pressure (psi) Dua | Max Load (lbs) @ Cold Inflation Pressure (psi) Single | Measuring Rim Width | Approved Rim Width | Overall Dia (in.) | Ply Rating / Load Range | RPM | Section Width (in.) | Smartway | Tire Weight (lb) | Tread Depth (1/32") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2366153 | 285/75R24.5 | 5675 @ 110 | 6175 @ 110 | 8.2 | 7.5 | 41.4 | 14.0 | 501 | 10.6 | Yes | 119.5 | 18.9 |
