Medium/Heavy TrucksAll-Season
KMD41

KMD41

Drive Axle Use

A mixed-service tire engineered for maximum durability and long tread life at highway speeds

The KMD41 was designed using Kumho Tire's ICOS (Integrated Component Optimization System). This proprietary technology optimizes tire casing shape, which redirects stress in critical areas. The result is maximum durability in a true mixed-service tire that delivers long tread life at highway speeds.

icos

Tire Highlights

  • Maximum durability
  • Long tread life

Features & Benefits

KMD41 tread detail
  • Engineered for mixed service, non-speed restricted highway use - max 68 mph.
  • Maximum traction and tread wear performance from the aggressive 31/32" multi-lug design.
  • Enhanced retreadability comes from groove bottom protectors designed to prevent stone drilling and stone retention.

The Kumho Tire Warranty Program

NOTE:NOT VALID FOR OE TIRES

KUMHO MANUFACTURER'S WARRANTY
+-

All Kumho commercial tires are covered for a minimum of 60 months from the date of purchase. Long haul Smartway verified tires have coverage for 72 months.

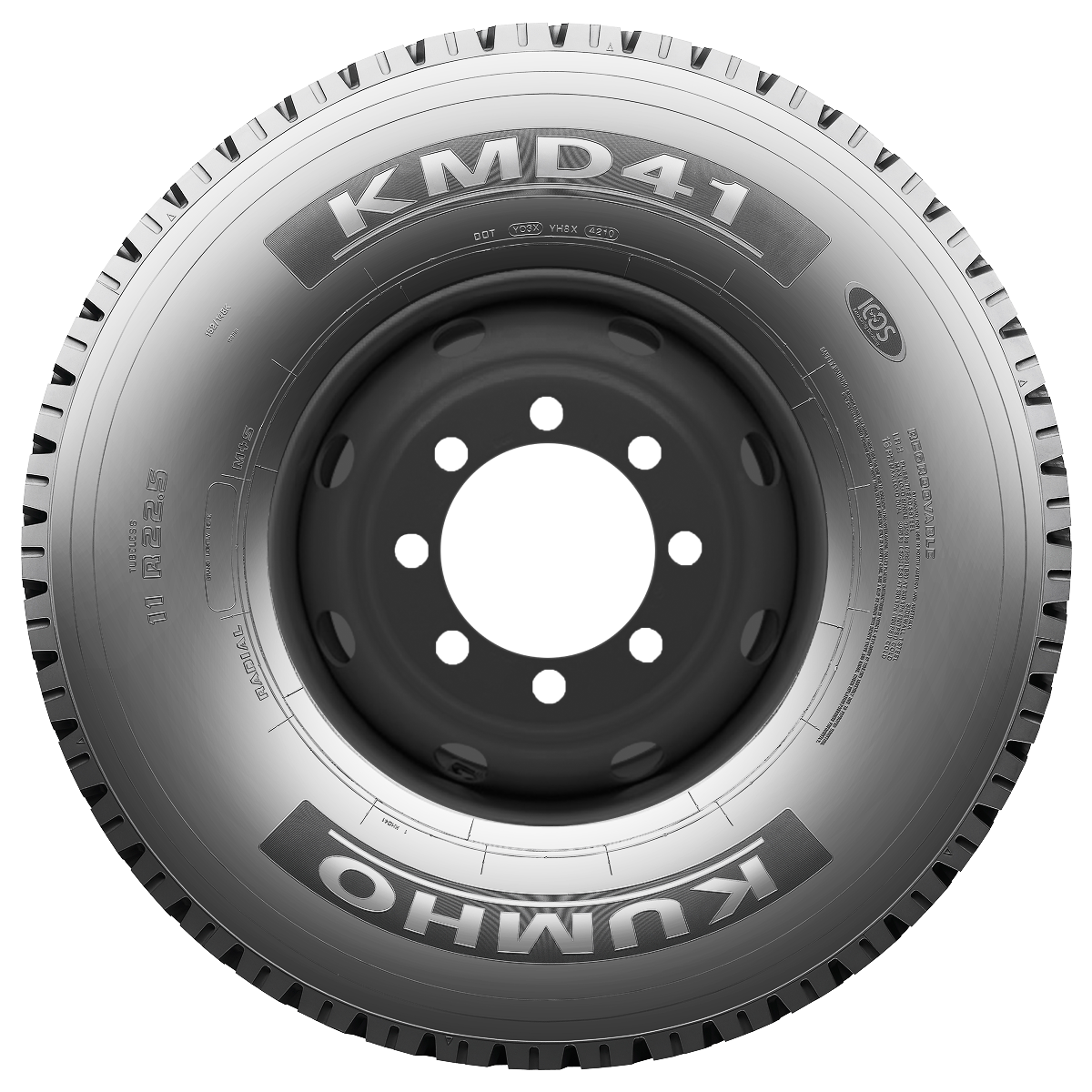

KMD41 side view

Size & Technical Data

22.5 Inch (1 sizes)
11R22.5
Product CodeTire SizeMax Load (lbs) @ Cold Inflation Pressure (psi) DuaMax Load (lbs) @ Cold Inflation Pressure (psi) SingleMeasuring Rim WidthApproved Rim WidthOverall Dia (in.)Ply Rating / Load RangeRPMSection Width (in.)SmartwayTire Weight (lb)Tread Depth (1/32")
214710311R22.56005 @ 1206610 @ 1208.27.542.016 (H)49510.9-130.930.0
24.5 Inch (1 sizes)
11R24.5
Product CodeTire SizeMax Load (lbs) @ Cold Inflation Pressure (psi) DuaMax Load (lbs) @ Cold Inflation Pressure (psi) SingleMeasuring Rim WidthApproved Rim WidthOverall Dia (in.)Ply Rating / Load RangeRPMSection Width (in.)SmartwayTire Weight (lb)Tread Depth (1/32")
214712311R24.56610 @ 1207160 @ 1208.29.044.116 (H)47110.9-139.530.0
